OBD/SS Elite

$1,000.00

Don't see your vehicle option?
View our Supported Vehicles

Full MagneRide + Adaptive Air Suspension Bypass for 2021–2024 GM SUVs

OBD-II Splitter Cable Included!

The OBD/SS Elite is a complete suspension system bypass module for GM SUVs equipped with both MagneRide (Z95) and Adaptive Air Suspension (F47). It allows full removal of electronic shocks, air springs, compressors, air lines, manifolds, and related modules without triggering suspension warnings, headlamp errors, or speed limiting.

Elite communicates through both the OBD-II port and a CAN tap under the passenger seat, maintaining proper communication with the Suspension Control Module while fully simulating the Automatic Level Control Module (ALCM). This allows the factory logic to remain stable even when the air system and MagneRide components are completely removed.

This is the required solution for lifted or converted GM SUVs where air suspension is being deleted. No resistor kits or partial bypasses can replicate this level of system control. The wheel displacement sensors need to stay connected and fully functional; sometimes, they are known to be damaged by road debris.

Lifetime Warranty

Full-System Bypass, Plug & Play

Cleanly removes both Magneride (Z95) and Adaptive Air Suspension (F47) systems. No reprogramming required.

No Warning Lights or Limp Mode

Eliminates all dash messages including Service Suspension, Service Leveling, and Headlamp errors. No 80mph speed limiter.

Keeps SCM Active, Removes Everything Else

The Elite bypass allows full removal of air lines, accumulator tank, air manifold, and ASCM, while leaving the Suspension Control Module (SCM) properly connected and active.

Built for 2021–2024 Full-Size GM SUVs

Fits Escalade, Tahoe, Suburban, and Yukon/YukonXL with Z95 and/or F47.

Assembled & Supported in the USA

Made in-house with U.S. support, pre-tested for performance, and includes everything needed for a clean install.

Why Upgrade from Magneride + Air Suspension?

Whether for lift kits, performance upgrades, or peace of mind, this module lets you delete complex factory suspension systems while keeping your dash error-free.

Comprehensive Bypass. Clean Dash.

The OBD/SS Elite is more than a shock bypass. It disables suspension faults, headlamp messages, and limp mode, even when air system components are fully removed.

OEM-Fit, Smart Install

Designed with OEM-style connectors and mounting. Installs cleanly using the OBD-II port and 8-pin CAN tap located under the front passenger seat. No guesswork or wiring mess.

Optional Accessories

Install Guides

Quick Start Guide

Step 1:
Vehicle Ignition OFF and Battery Disconnected
Step 2:
Remove two fuses from the under hood fuse box located on the passenger side of the engine in front of the battery.
1. F61 (ALC MAIN 15A)
2. F68 (ALC MTR 40A)
Step 3:
Route the 2 pin CANBUS Tap Harness from under the front passenger seat, through the center console, to the OBD port.
Step 4:
Plug the CANBUS Tap Harness into the 8 Pin - module located under the front passenger side seat in plain view.
Step 5:

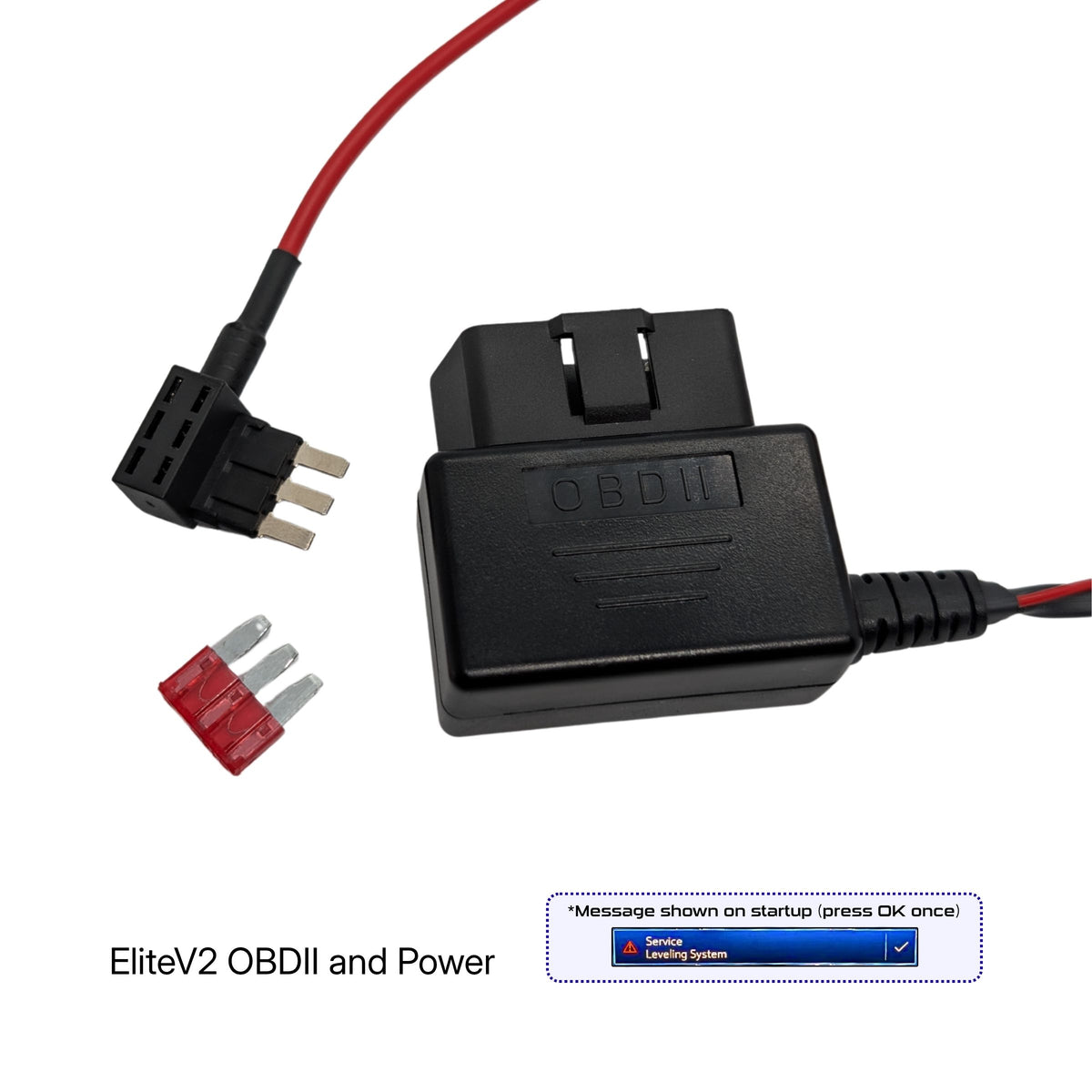

Connect OBD/SS Elite to the OBD Port
Step 6:
Connect the CANBUS Tap Harness to the OBD/SS Elite
Step 7:
Reconnect the Battery
