MagneRide Delete Module (OBD-Based Shock Simulator)
The OBD/SS Classic is the definitive MagneRide delete module for GM vehicles equipped with Magnetic Ride Control. It is designed for applications where the factory electronic shocks are being removed and replaced with traditional shocks or coilovers, while eliminating suspension warnings, diagnostic trouble codes, and speed limiters caused by a MagneRide delete.
The module functions as an OBD-based shock simulator, communicating directly on the vehicle CAN network to suppress MagneRide shock DTCs that appear when the factory magnetic shocks are unplugged or removed. Because the logic stays inside the vehicle, there are no external resistors, no exposed hardware under the chassis, and no calibration or ride height trim procedures required.

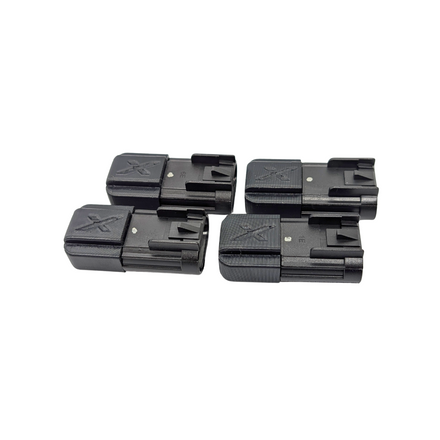

The OBD/SS Classic does not suppress AutoRide, Automatic Level Control (ALC), or ride height sensor diagnostic codes. If the vehicle is lifted or lowered and the ride height sensors cannot be reconnected, Ride Height Simulators are required to prevent suspension faults.
For vehicles equipped with AutoRide, the ALC module and air compressor must remain powered and functional. However, the factory air shocks can still be removed by rerouting the air lines to back-feed the compressor, allowing it to pass its self-check. If the vehicle will continue towing 2,000 lbs or more, we strongly recommend retaining the rear air shocks and replacing only the front shocks.
